RM-8350 5 Tonne Extended Platform Lift
The Redmount RM-8300 series platform scissor lifts come fitted as standard with front turntables and rear slip platforms making it ready for a computer wheel alignment machine. Redmount recommend our Averna AV99 3D aligner with this lift.
As the RM-8200 series feature a secondary scissor lift built into the platforms it makes it very versatile. It enables you to lift the wheels free from the platform allowing you to work on suspension and brakes. It has a 5 Tonne lifting capacity and 5 metre long platforms making it ideal for small cars right up to commercial vehicles.
This lift can be fitted on floor with special longer drive up ramps (optional extra) or installed in-floor to make it completely flush with the ground. In-floor spec is supplied with drive on and drive of ramps.
It also features, automatic levelling system, 220v 2.2Kw Motor and high pressure hydraulic pump, pneumatic lock release, emergency hand pump, height limit switch
As with all Redmount equipment the RM-8200 is CE certified.
€9,500 excl. VAT

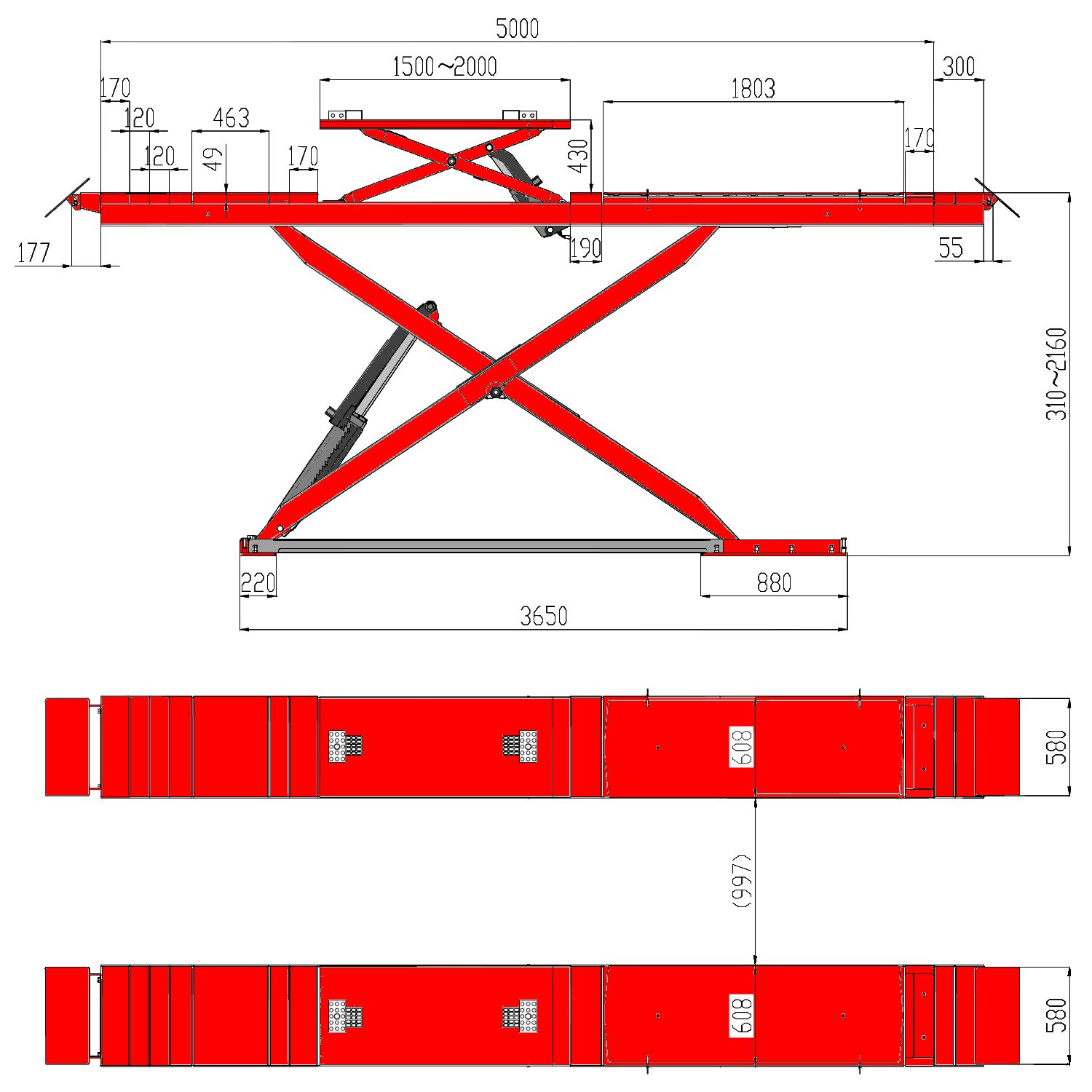

Specifications
| Model | RM-8250 |
|---|---|
| Lifting Capacity | 5000kg |
| Minimum Height | 0mm |
| Runway Length | 5300mm |
| Max Lifting Height | In-floor Platform – 1900mm, On-Floor Platform – 2160mm, Inner Jack – 450mm |
| Motor Power | 2.2kW |
| Voltage | 220-240V Single Phase |
