6.4 Tonne 4 Post Alignment Lift – Extended Runway

The Redmount 6400kg extended platform 4 post lift is a commercial grade, electro/hydraulic lift suitable for large light commercial vehicles, long-wheelbase vans, campervans, and wheel alignment work. This lift uses an air operated pneumatic safety lock release.

Like all Redmount heavy duty equipment, this 4 post lift operates on a powerful, low maintenance electro/hydraulic system.

Wheel Alignment Specification:

This 4 post vehicle lift is supplied as standard, with:

• A 2.5 tonne central jacking beam (rolling jack) for wheel free servicing.
• Front turntables.
• Built in rear sliding platforms.

Safety Features:

• Heavy duty mechanical platform locks,
• Automatic top height limit switch,
• Pneumatic lock release,
• Slack Cable sensor and lock.

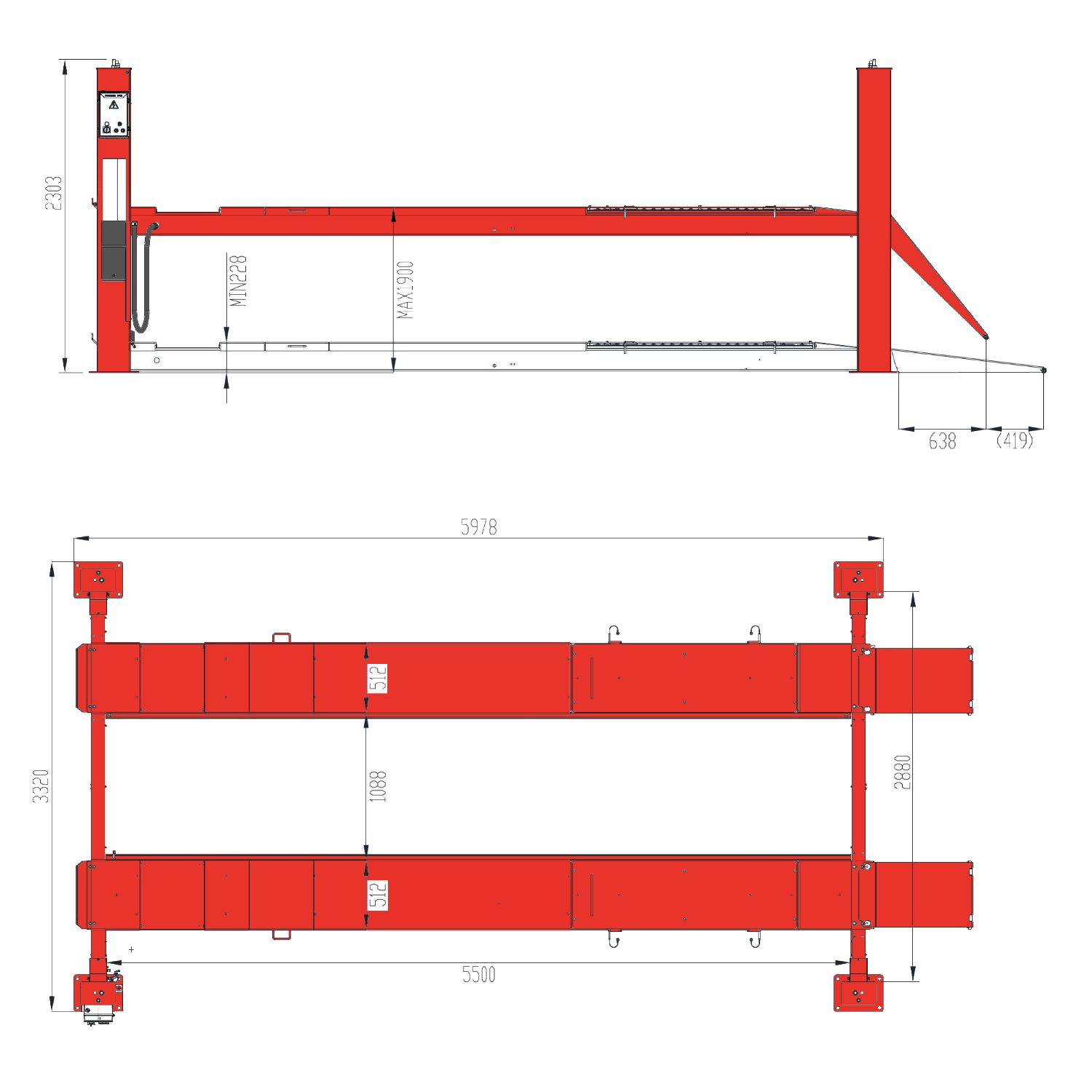

With it’s extra long runways, this models 5.5 meter platform length allows you to lift extended chassis vans, twin wheelers, and commercial fleet vehicles and minimises overhang.

Each lift is supplied with heavy duty floor anchor bolts and installation instructions. Due to the size and weight of this 6.4 tonne lift, professional delivery and installation by our fitters is highly recommended (available nationwide for an additional fee).
