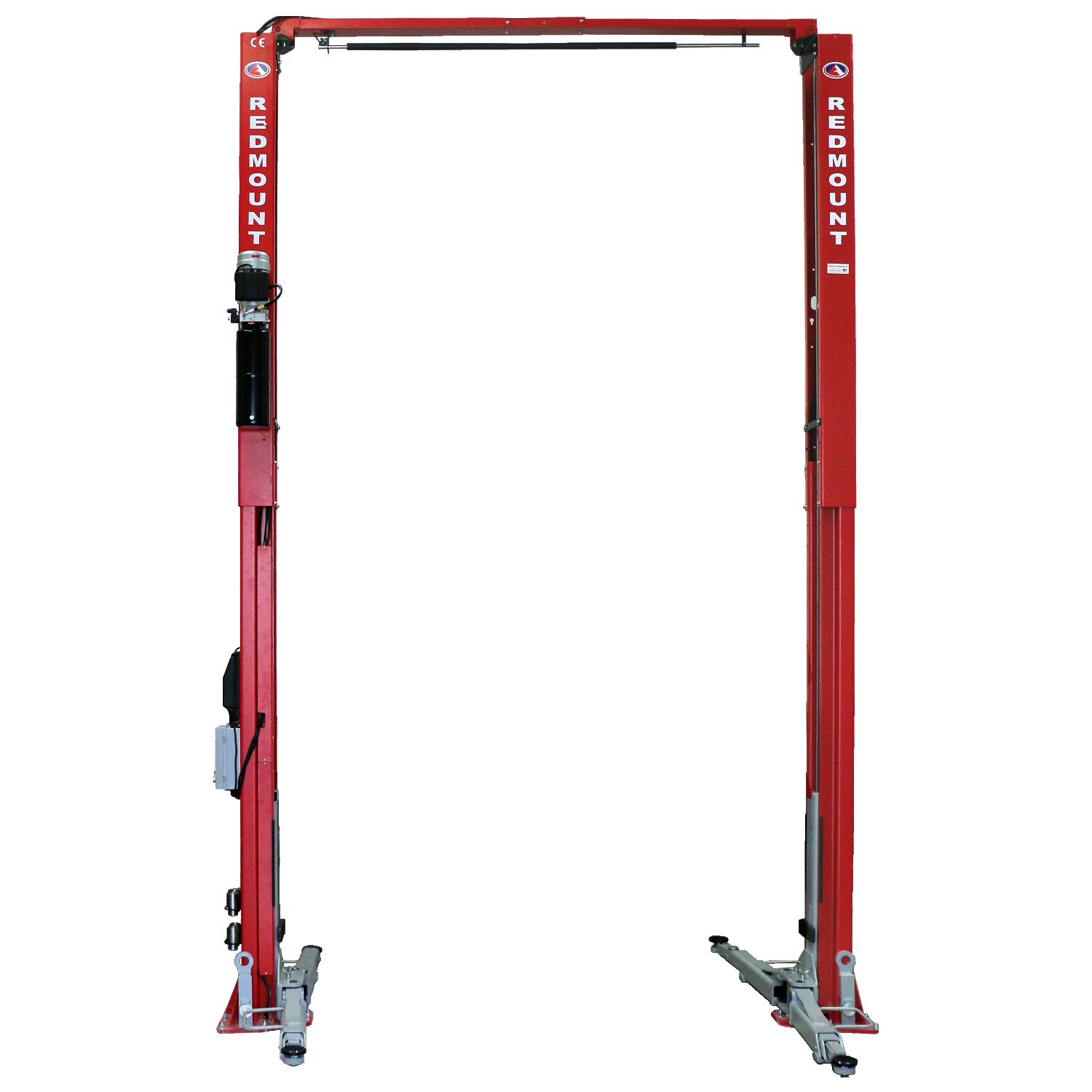

5.5 Tonne, Clear Floor

The RM 9155 (5.5 ton capacity) clear floor two post lift is supplied with an electrical safety lock release. The lift is powered by an electro-hydraulic system with wire cable equalization. Safety features include carriage locks, arm locks, and maximum headroom limit switch.

The “Double S” (8 bend) post design is of a similar style to rotary branded lifts. It comes with 3 stage (double extension) arms which allow a greater range of vehicle positioning meaning the weight of the vehicle can be better balanced. Also suppled with 4 additional extension pieces that can be fitted to each arm for ever greater reach.

Van/jeep height adaptors are included with this item as standard.

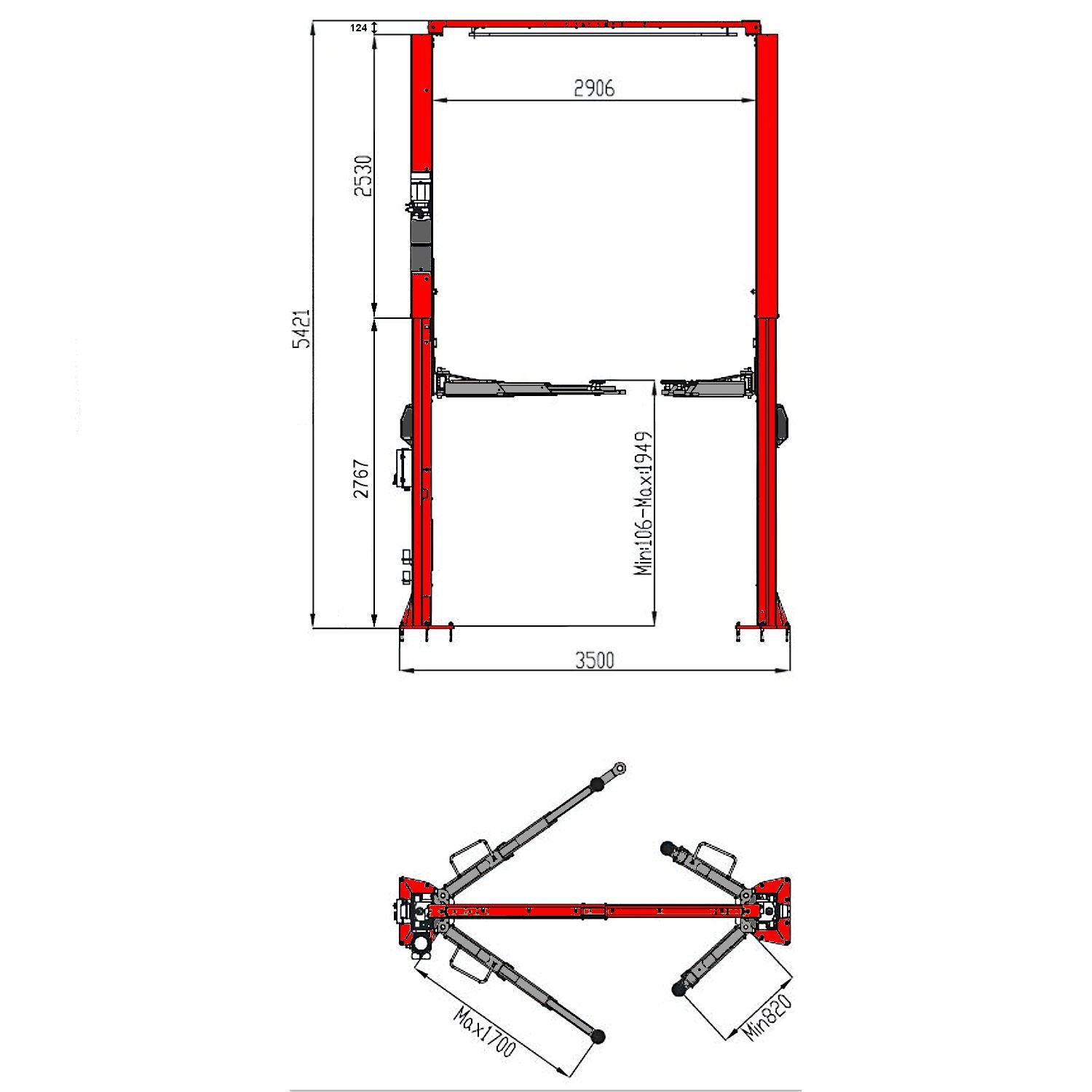

The lift can be set up in a range of different heights as can be seen in the technical drawing on this page.

All of our lifts are CE approved (as is all Redmount equipment).

Collection is free at our store or for an extra charge we can arrange delivery and/or installation of this lift.

4,600 excl. VAT

Specifications

Model

RM-9155

Lifting Capacity

5500kg

Max Lifting Height

1949mm

Minimum Height

106mm

Lifting Time

55s

Motor Power

2.2kW

Voltage

220-240V Single Phase

Weight

1095kg

Overall-Width

3500mm

Overall Height

5421mm

Required Concrete Base Depth

150mm
