4.5 Tonne Clear Floor

The RM9145 clear floor two post lift is supplied with an electric safety lock release. This lift features an electro-hydraulic power unit with a chain over dual hydraulic ram lifting system with steel cable equalization and has a powder coated finish.

This lift is designed by an Italian company to Redmount’s specifications and fitted with a power unit (motor and pump) supplied by Bosch Rexroth Group. All of our lifts are CE approved (as is all Redmount equipment). Redmount teamed up with Bosch Rexroth, making them the sole-supplier of power-pack (motor/pump unit) for our two post and four post lifts. We are the only supplier to have this agreement in place. For further information, you can find technical Information on our site. The power unit is fitted with an emergency manual pump for use in the event of an electricity power failure.

Safety features include carriage locks, arm locks, rubber door protectors, lifting height limit switch and max headroom limit switch. The RM-9145 is equipped with double extension lifting arms. a set of height adaptors for vans and jeeps are included with this item as standard.

The RM9145 can be supplied with either single or three phase power at no extra charge. (subject to availability). Supplied in red with grey carriages.

Collection is free at our store or for an extra charge we can arrange delivery and/or installation of this lift. If shipped to you, floor fitting bolts and full step-by-step installation instructions are included. you will need about 10 litres of Hydraulic oil #32 which is available at all good motor factors

2,750 excl. VAT

Specifications

Model

RM-9145

Lifting Capacity

4500kg

Max Lifting Height

1900mm

Lifting Time

55s

Motor Power

2.2kW

Voltage

220-240V Single Phase, 380V Three Phase

Weight

830kg

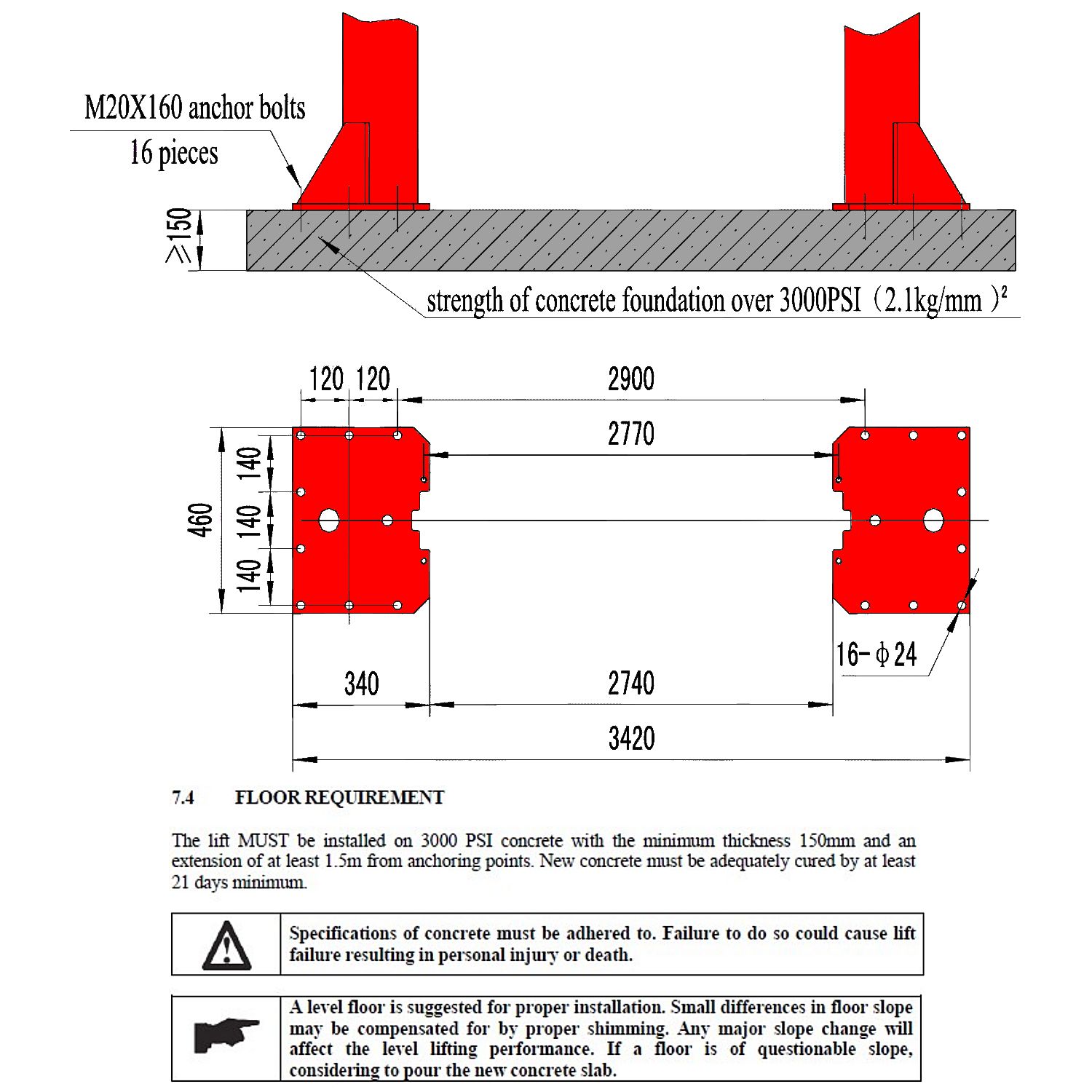

Required Concrete Base Depth

150mm
