4.6 Tonne, Clear Floor RM-9146

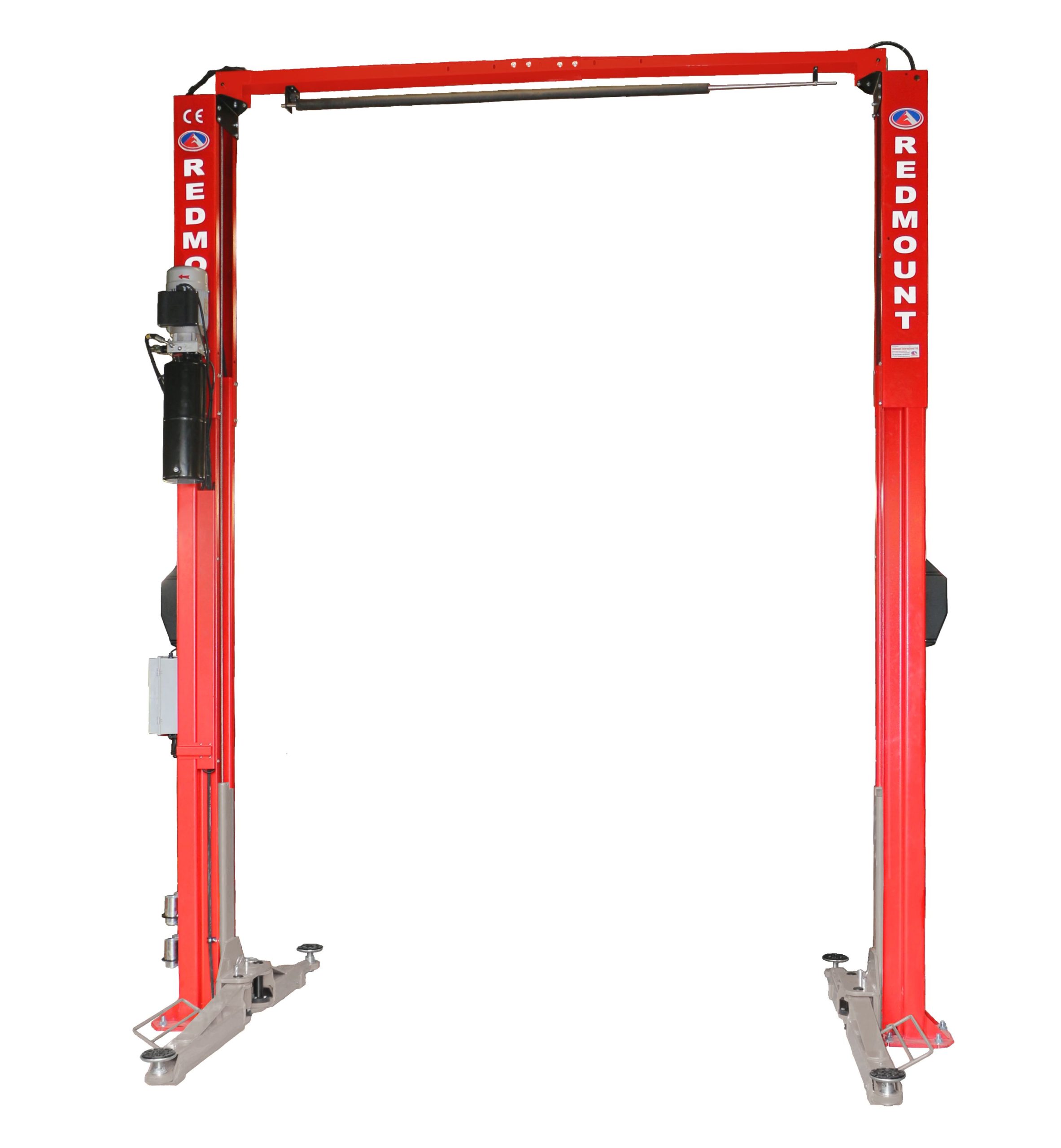

The Redmount 4.6 tonne 2 post lift (RM-9146) is a gantry style lift designed for professional workshops handling car, jeeps and small vans. This clear-floor (baseless) design provides an unobstructed workspace, allowing for the easy use of transmission jacks, oil drainers and other tools directly under the vehicle.

Commercial Performance & Build:

• Asymmetric Arms: Equipped with a combination of single and double-extension arms designed to balance the weight of the vehicle in a way that the doors can be opened further while on the lift.

• Stronger by Design: The “Double S” (8-bend) post design is of a similar style to Rotary branded lifts which provides rigidity.

• Level Lifting: Features wire cable equalization for level lifting.

• Accessory Kit: Includes a set of four 80mm height adaptors as standard.

• Safety: Single point lock release, overhead limit switch and automatic arm locks for safe, simple operation.

• Direct-Drive Hydraulics: Low maintenance hydraulic cylinders. no pulleys, chains, load nuts or worm gears.

Installation Requirements:

• Power: 220V Single Phase.

• Concrete: Minimum 200mm depth.

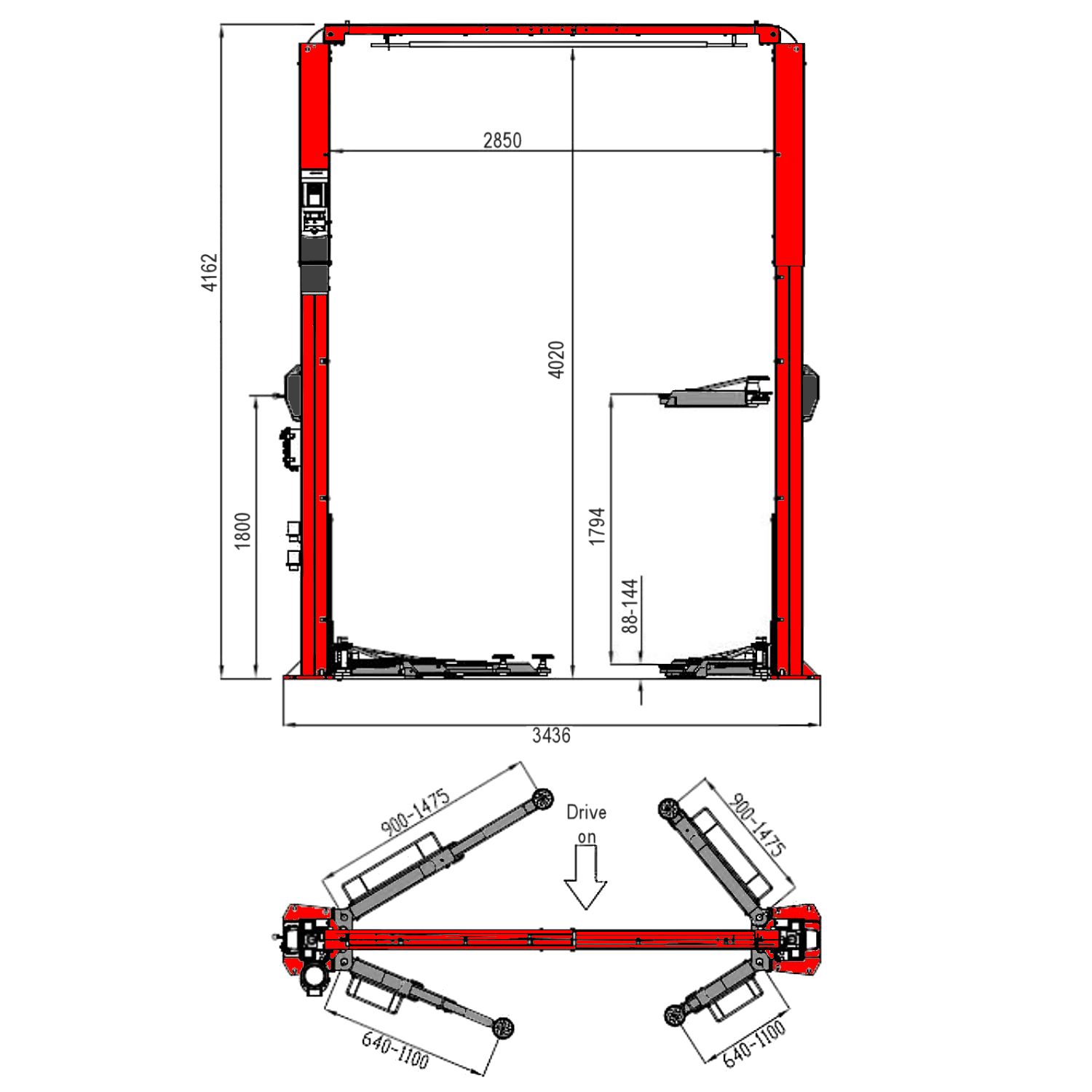

• Height: Overall height is 4162mm—please verify your ceiling clearance before purchase.

• Certification: Fully CE Approved and compliant with Irish safety standards.

Collection is free at our warehouse in Dundalk or for an extra charge we can arrange delivery / installation.
